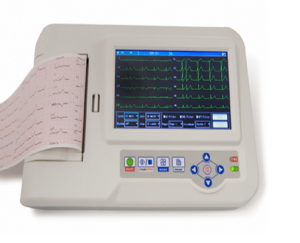

6 Channel ECG Machine With Color Screen AM-ECG-C06B

Features

Portable delicate design, big color display, very easy to operate
Accurate pulse pace identification and excellent automatic analysis function
High accuracy digital filter, auto baseline adjustment
12 leads synchronously acquisition and display
Working modes: Manual / Auto / Analysis/Storage
800×480 graphic 7 inch color LCD screen
40 patient cases save and replay
Adapt to 110-230V, 50/60Hz power supply
Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.
112mm*20m high resolution thermal printing
300mm*230mm*75mm, 2.8kgs
Language: English, Chinese, French, Italian, Spanish, Russian

Technical Specifications

PARAMETER	SPECIFICATION
Lead	Standard 12 leads
Lead acquisition	12bit/1000Hz(synchronously 12 leads)
Work mode	MAN, AUTO, ANALYSIS Modes
Filter	AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR	≥100dB (with AC FILTER)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05～160Hz(-3db)
Noise level	＜15μVp-p
Inter-channel Interference	≤0.5mm
Sensitivity	5，10，20, 40, Auto (mm/mV)
Recording mode	3ch, 3ch+, 3ch+++, 6ch Default Man. Mode is 3ch format Default Auto. Mode is 6ch+ format
Paper speed	6.25、12.5、25、50mm/s（±3％）
Paper	112mm *20m Roll paper
Communication	RS232/ USB port
Power Supply	AC 110-230V( ±10%),50/60Hz （ ±1Hz),60VA DC Built-in rechargeable battery,14.4V(2000mmAh)
Dimension/Weight	300mm×230mm×72mm/2.8Kg
