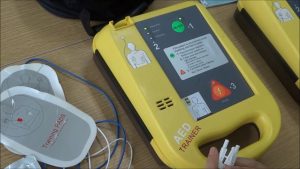

Automated External Defibrillator AM-AED-7000

Category:

Technical Specifications

–Portable Automated External Defibrillator (AED)

–It is easy to operate and use. It requires low for operator and can be equipped for household or public; and supply first-aid to the abrupt death promptly

–Adopting ECG analysis advanced technology of ARI Company, it can analyze the patient’s ECG to judge the heart’s state, whether to defibrillate and its energy. It can not only improve the success rate, also reduce the hurt to heart to lowest degree

–Pulse Type: Biphasic Waveform

–Three-step defibrillation process

–Two-button operation

–Extensive voice and visual prompts for the operator

–Continuous event recording for reporting each use to a printer or computer

–Weekly self-test to ensure readiness

–Biphasic energy output

–Lock-out protection to prevent inadvertent defibrillation

Defibrillator

Output: Biphasic Truncated exponential

Energy Sequence: 150, 150, 200J

Charge Time: 4sec. to150J

8 sec. to 200J

Analysis Time: 4-16 sec

Combined Analysis and Charge Time from power up after 6 shocks

From start of analysis to shock ready:

Less than 20 seconds to 150J

Less than 30 seconds to 200J

Audible Prompts: 20 audible prompts

Visual Prompts: LED prompts

Controls: Two buttons – On/Off, Shock

Output Energy Accuracy:

±15% or ±3J (whichever is greater) to any impedance from 25 to 175Ω

Battery

Non-Rechargeable LiMnO2 12V, 3.0 Ah

Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules

Shelf Life (25°C±15°C): 10 years (5 years storage + 5 years standby) 5 years standby (after installation)

Electrical Isolation

Power: Unit operates on internal battery only

External Electrical Connections:

No external devices are attached to the unit

Risk Current Category: Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)

Physical

Dimensions 300 X 210 X 80 mm

Weight 2 kg
