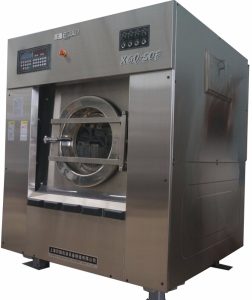

Automatic Washing Machine (Washer Extractor) AM-XGQ

Features

  1. Fully automatic, microcomputer-controller, freely programmable, 30 possible programs, operator could set flexible.
  2. High quality stainless steel, good appearance, long life.
  3. Full suspension shock structure, low shake, low noise, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
  4. Imported bearing, precise and durable.
  5. Fixed screws support for long-distance transportation, avoid shaking damage during transit.
  6. High quality inverter system, easily realize washing and extracting frequency stepless adjusting.
  7. Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
  8. Built-out bearing lubrication, simple operation, convenient maintenance.
  9. Safety door interlock system, reduce fatigue, misuse and the risk.



Technical Specifications

Model XGQ25F XGQ30F XGQ-50F XGQ-70F XGQ-100F
Capacity (kg) 25 30 50 70 100
Drum Dimension (mm) Φ800×545 Φ905×500 Φ1065×628 Φ1200×600 Φ1200×820
Drum Volume (L) 274 321 559 678 930
Drum Speed (r/min) 46/750 40/750 38/720 38/700 38/650
Voltage (V) 220/240/380/415/440
Outer Cylinder (SS304) Fully stainless steel
Inner Cylinder (SS304) Fully stainless steel
Motor Power (kw) 3 4 5.5 7.5 7.5
Inverter Power (kw) 3.7 5.5 7.5 11 11
Hot Water Pipe (inch) 3/4 1 11/4 11/2 2
Cold Water Pipe (inch) 25mm/

65mm

1 11/4 11/2 2
Air Pressure (MPa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Dimension (mm) 1120x1100x1600 1340x1360x1722 1640×1570×1912 1750×1540×2132 1750×1640×2132
Net Weight (kg) 700 1450 2200 2800 3100
