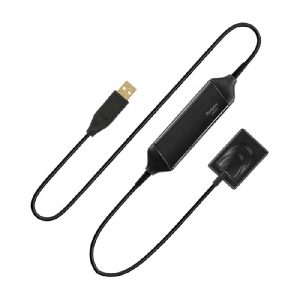

Sensor DS530
-Sensor external dimensions: 37.0*24.5*2.5mm
– Sensing region: 30X20mm (600mm2)
– Sensor pixel region: 1580*1050 pixels
-Sensing Pixel: 3.2 million pixels
– Pixel size: 20*20um
– Resolution: >20 line / mm
– Life: >100,000 times
Line Long (Material – PU): 3m
Grayscale: 12 bits
Connection: USB Standard
Sensor characteristics:
World recognized outstanding image quality, CRA assessed the test lab’s top APS sensor
Sensor housing using ultrasonic welding technology, the use of the patient can not easily be chewed. The unique design of smooth-sided triangular fillet sensors are comfortable without reducing the image size.
Direct USB2.0 connection, no external power supply
Built-in image converter chip
Programmable controller is no longer needed, more convenient and more concise
IP67 waterproof rating
3m cable (polyurethane material, can be extended to a maximum length of 18m)
Protection against accidental drops (1m at up to 15 times) to avoid
Image acquisition time of 3 seconds
