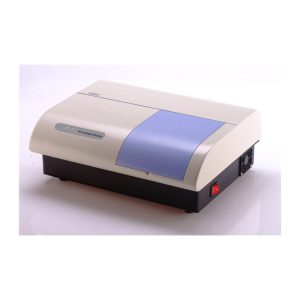

Elisha Reader AM-AR-202

Features

Windows operation interface, figure button, mouse operation

96-well plate, multiple tests in the single plate

Arrangement of Test item in Micro-plate can be store and re-use

Plate shaking, speed and time adjustable

Open system, test item and parameters can be added or modified.

Large storage for 1000 test item and 1,000,000 results

External large LCD color screen,

Printing comprehensive report,include hosiptal and patient information and test results

External computer, easy to use.



Technical Specifications

PARAMETER SPECIFICATION
Microplate types 96-well plate(U,V,or plat-bottom)
Test mode End-point, kinetic, Multi-wave analysis
Wavelength 405、450、492、630nm, 4 more filters optional
Measurement range 0-4.00Abs
Light source Tungsten Halogen,12V/20W,>2000 hours
Measuring system 8-channel optical system
Test mode End-point, kinetic, Multi-wave analysis
Resolution 0.001Abs(display),0.0001Abs(Inner counting )
Stability <±0.005Abs/10min
Sensitivity ≥0.01L /mg
Linearity r > 0.999
Repeatability < 0.3%
Reading speed 5s single wavelength , 10s double wavelength
QC West guard Multi-rule, automated QC alert
Self-Checking function Self-checking and calibration function
CPU High-speed CPU
Printer External jet printer, multi-form patient report
Interface RS232 interface,USB, PSTN and PC connection.
Power supply 220VAC 15% or 110VAC 15%50-60Hz 100W
Work environment Temp 5°C-40°C;Humi ≤85%
Machine Dimension 43CM*34CM*16CM
Weight 9 KG
