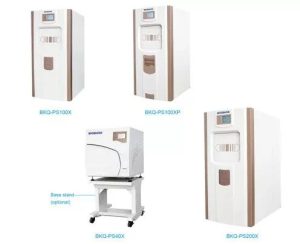

H2O2 Low Temperature Plasma Sterilizer AM-APS-1XP/2XP

Usage

ARI Plasma sterilizer takes H2O2 as sterilizing agent and form plasmatic state of H2O2 by electromagnetic field under low temperature. It combines both gaseous and plasmatic H2O2 to make sterilization for the items in chamber and decomposes the residual H2O2 after sterilization.

It is widely used in CSSD or other medical institute for the sterilization of electric wire and cable, optical glasses and glass lens, power equipment and batteries, endoscopes, catheter, nonmetallic and other wet or heat sensitive instruments.



Technical Specifications

PARAMETER SPECIFICATION
Chamber dimension/volume APS-1X/1XP:750D*450W*400Hmm/135L

APS-2X/2XP:1250D*450W*400Hmm/225L

Chamber structure and material Rectangular shape

Aluminum alloy material

Overall dimension APS-1X/1XP:990D×760Wx1600Hmm

APS-2X/2XP:1460D×760Wx1600Hmm

Door quantity and type Single door, floor standing,

automatic vertical sliding,

operation on touch screen

Loading method Shelf loading, double layers
Installation form Installation on the ground
Program Standard cycle flash cycle Leak test
Sterilization cycle time ≤50mins ≤26mins
Sterilization temperature 50℃±5℃
Sterilization medium H2O2 Solutions, 60% concentration
H2O2 Solutions injection mode Cassette type,

12 capsules on each cartridge

2.2ml H2O2 per capsule.

H2O2 Solutions consumption APS-1X/1XP: 2 capsules per full cycle,  1 capsules per flash cycle

APS-2X/2XP: 4 capsules per full cycle,  2 capsules per flash cycle

Weight 135L:400kg / 225L: 500Kg
Power supply Driving power: AC 380 V ± 10% 3 phases 50 Hz, 3.8kw(4.7kw)
Display and operation 5.7’’ true color Touch screen display and operation
Data printer Built-in thermal printer
Loading method Loading shelves
Safety system
Door safety Adapts mandril-driving automatic door with reliable sealing function and safe lock device to guarantee the personal safety.
Alarm The machine equips with visible alarm information when error occurs.
Environment safe The matter after sterilization is water and oxygen molecule that have no toxic harm to staff or patient and there is no need for draining or air exhausting.
Component material
Packing size/G.W 300mm*260mm*160mm, 3.5KG
Component Material
Chamber Aluminum alloy
Chamber insulation material High quality sponge
Outside cover Glass fiber reinforced plastics
Door seal Silicon rubber
Chamber support Carbon steel welded
Pipeline system Stainless steel and copper
Internal loading rack Stainless steel
External transfer trolley No.
Configuration List
Chamber body PS100.1 ARI aluminum alloy chamber, both side welding, chamber warranty > 10 years
Door PS100.2 ARI Stainless steel and color glaze tempered glass
PLC CUP226 SIEMENS, Germany Strong function,advanced performance,high reliability, Multi communication mode.
10’’ touch screen T6457-D-S ARI Colorful display, real-time parameter display, convenient
Printer SPIB ARI Thermal printer, can print temperature, time, pressure and curve graph and sterilization result.
Vacuum pump ARI High rate of flow, low noise
High precision pressure transmitter Setra USA Import from America, High precision detection
Pressure transmitter Wika Germany Import from Germany, High accuracy
Temperature sensor PT-100 WIKA Germany
Plasma power ARI High frequency
Solenoid valve SMC, Japan
Air filter Sartorius stedim
Biological Incubator

(APS-1XP, APS-2XP)

The incubator is integrated with the equipment, and has independent control system, which can operate independently in the state of shutdown, and can be cultivated and operated conveniently.
Curve for cycle
Working process

Pre-vacuum → Pre-plasma → Ventilation 1 → Purification 1 →Diffusion1→ Ventilation2→ Vacuum2→ Plasma1 → Ventilation3 → Purification2 → Diffusion2 → Ventilation4 → Vacuum3 → Plasma2 → Ventilation5

Standard and certificate
ISO13485, CE.
Consumables
Name Specification Consumption Photo reference
H2O2 cassette 12 capsules in one piece. APS-1X/1XP:

2 standard cycles for each cassette

APS-2X/2XP:

4 standard cycles for each cassette

Biological indicator 50 pieces in one box. 2 pieces per day
Chemical indicator 10cm x 1.8 cm

200 pieces in one bottle

5-10 piece per cycle
Indicating Label for (Red/Green) 2.5cm×6cm

18000pieces/20Bags/Case

Depends on sterilizer items
Paper-plastic pouch 75mm X 100m Depends on sterilizer items
100mm X 100m
150mm X 100m
200mm X 100m
250mm X100m
300mm X100m
Non-woven fabric cloth 300mm×300m Depends on sterilizer items
400mm×400m
450mm×450m
500mm×500m
600mm×600m
700mm×700m
800mm×800m
900mm×900m
1000mm×1000m
1100mm×1100m
1200mm×1200m
Sterilization Crepe Paper

(Color optional: Blue, White, Green)

300mm×300m Depends on sterilizer items
400mm×400m
500mm×500m
600mm×600m
750mm×750m
900mm×900m
1000mm×1000m
1200mm×1200m
