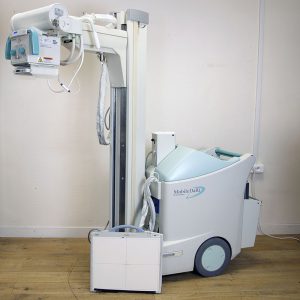

Mobile Digital X-ray System AM-NKX-100D

Features

  1. Produced by high-frequency inverter technology, stable high-voltage output can get good image quality;
  2. A compact design, easy to carry and work in different regions and locations;
  3. There are three exposure control methods: remote control, hand brake and interface buttons;
  4. Fault self-diagnosis and self-protection;
  5. With a flexible digital interface, users can go deep into the core programming control and can adapt to different DR detectors.
  6. You can choose push-button or touch screen
Category:



Technical Specification

PARAMETER SPECIFICATION
Maximum power 5KW
Photography KV range 40-50KV、40-60KV、40-80KV、40-100KV、40-110KV
Photography mA range 100mA、80mA、63mA、50mA、32mA
mAs range 0.32-315 mAs
Exposure time range 0.01-6.3s
Working frequency ≥30 kHz
Input power type 220V±10%, 50Hz/60Hz
Host size 37(L)×26(W)×23(H)cm
Weight 21KG
Inverter method PWM(Pulse width modulation)

Standard Configure

Flat panel detector+ Image workstation+ Trolley

Flat panel detector

Detector category: amorphous silicon

Scintillator CsI

Image size 35×43 cm

Pixel matrix: 2560×3072

Pixel pitch 140 μm

A/D conversion 16 Bit

Spatial resolution 3.6

LP/mm drawing time: 2S

Battery standby time: 10 H

Image workstation

Screen size 14.1/15.6

Processor Core Quad

Core

Memory 4G

Hard disk 500G

Graphics card



Trolley

Net weight 70KG

Maximum height: 200cm

Width 66cm

Adjust 50~200cm
