Introduction
AOM Series Operating Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology, and surgery.

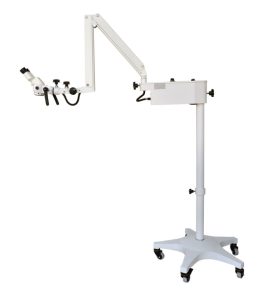

AOM-102 is mainly used for micro-operating in dental and ophthalmology surgery.
Technical Specifications
| PARAMETER | SPECIFICATION |
| Observation Angle | 45°tilted |
| Magnification of Observation | 6X |
| Interpapillary Distance | 50mm-80mm |
| Diopter | ±5D |
| Focal Length of Objective | F=200mm and F=300mm two objectives |
| Magnification Changer | 3-step: 0.6X, 1X, 1.6X |
| Total Magnification | 3X, 5X, 8X, 4.7X, 7.5X, 12X |
| Linear Field | 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
| Fine Focusing Distance | 10mm |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx |
| Lamp | 10W LED lamp |
| Filter | Build-in green and yellow filter |
| Balancing arm | 2-part arm with universal joints |
| Floor stand | 2-part column fitted on the five-star base with casters |
| Power supply input | AC100V-240V, 50-60HZ |
| Power supply adapter | DC12V3A, 36W |
| Optional Accessories | Beam splitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, WUCAM0720PA, FHD2100, HD200), Monitor (S24R352FHC), Objective F=250mm & F=400mm, Wall mount bracket, Monitor mount (GM112B, DS312B) |
