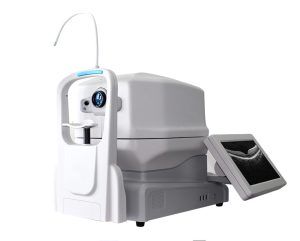

Optical Coherence Tomography AM-OCT2030

Features

Simple, speedy, and easy to operate. Meet the basic clinical needs of OCT.
It’s an ophthalmic optical coherence tomography scanner tailored for rapid screening of fundus diseases in outpatient clinics.
It’s equipped with professional analysis software to meet the requirements of OCT in the clinical examination and analysis of ophthalmology.

Category: CT

Technical Specifications

PARAMETER	SPECIFICATION
Measurement Characteristics	Axial resolution: 6um(in tissue)
Horizontal resolution: 13um
Scanning Characteristics	Maximum A scanning speed: 20KHz, tolerance ± 5%
Maximum scanning depth: 2.65mm (in tissue), tolerance ± 3%
Maximum scanning range: 13mm × 13mm, tolerance ± 5%
Light Source Characteristics	Center wavelength: 840nm, tolerance 士 10nm
Half width: 35nm, tolerance 士 5nm
Optical power: ≤750uw (at the cornea)
Refractive compensation range: ≥-12D~+12D
Fundus Image Light Source	Center wavelength 760nm, tolerance ± 5nm
Optical power: ≤50uw
Retinal thickness Measurement	Retinal thickness measurement tolerance: 士3%（in tissue）
Retinal thickness measurement repeatability: ≤2%
