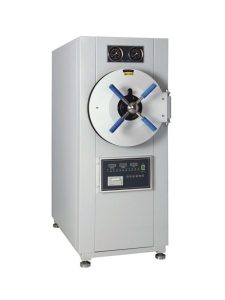

Pulse Vacuum Horizontal Type Sterilizer AM-WS-YV

Features

  1. Sterilizing course automatic sterilization controlled by computer, easy to operate.
  2. With drying function, suitable dressing drying.
  3. With over-temperature, over-pressure auto-protect device.
  4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t be start on if the doesn’t closed well.
  5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
  6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
  7. The chamber of the sterilizer is made of stainless steel.
  8. Touch screen color display and with printer.
  9. With vacuum pump



Technical Specifications

PARAMETER WS-100YV WS-150YV WS-200YV WS-300YV
Sterilizing chamber volume 100L (Φ440mm x 670mm) 150L (Φ440mm x 1000mm) 200L (Φ515mm x 1000mm) 300L (Φ600mm x 1080mm)
Max.work temperature 134℃ 134℃ 134℃ 134℃
Max.work pressure 0.22MPa 0.22MPa 0.22MPa 0.22MPa
Working temperature range 115℃ – 134℃ 115℃ – 134℃ 115℃ – 134℃ 115℃ – 134℃
Dry time range 0-99 min 0-99 min 0-99 min 0-99 min
Time of sterilization 0-99 min 0-99 min 0-99 min 0-99 min
Heat average ≤± 2℃ ≤± 2℃ ≤± 2℃ ≤± 2℃
Power 10KW/380V 50Hz 10KW/380V 50Hz 10KW/380V 50Hz 13KW/380V 50Hz
Dimension 1400×660×1640 mm 1400×660×1640 mm 1400×750×1740 mm 1520×850×1850 mm
Transport dimension 1560×820×1820 mm 1560×820×1820 mm 1560×910×1880 mm 1680×1080×2100 mm
G.W/N.W 430/340 KG 440/350 KG 460/370 KG 580/470 KG
