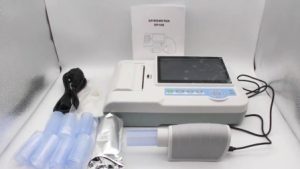

Spirometer AM-SP100

Product Features

l  Measurement of Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), maximum

voluntary ventilation (MVV) and relevant functions, more than 30 parameters can be measured and displayed; for several times of measurement, the optimal result will be displayed; the condition of subject can be shown by the ratio of the measured value and the predicted value.

Category:



l  Measurement Parameters:

(1) Forced Vital Capacity (FVC); FVC, FEV1, PEF, FEV1%, (FEV1/FVC),FEF25, FEF50, FEF75, FEF2575, FEV1/VC,FEV6,FEV1/FEV6,ELA,FET,EVOL,FIVC,FIV1/FIVC,PIF,MVV

(2) Vital Capacity (VC/SVC):VC, IC, ERV, IRV, EVC, IVC, TV,VE,PR, tl, tE,TV/tl,tl/ttot

(3) Maximum Ventilatory Volume (MVV): MVV

l  Real-time display respiration waveform: Flow-Volume loop and Volume-Time curve chart;

l  7” color LCD touch screen, buttons can be operated along with touch screen

l  Incentive animation operation guide, easy for the use between children and the old;

l  Built-in thermal printer, reports can be printed directly;

l  BTPS automatic correction function, compensate for the impact of environmental differences;

l  Test time and environment temperature display;

l  Calibration function, ensure measurement accuracy;

l  Multiple predicted value can be selected, suitable for different population;

l  Storage of more than 10,000 groups of data;

l  Lung age estimation function;

l  Built-in lithium battery, supports both of AC and DC;

Technical Specifications

PARAMETER SPECIFICATION
Volume range ±10L
Volume accuracy ±3% or ±0.05L (whichever is greater)
Flow range ±16L/s
Flow accuracy ±5% or ±0.02L/s (whichever is greater)
Power supply 100V-240V~50/60Hz
Input power 60VA
Safety type Class I equipment, type BF applied part
LCD screen 7” color TFT touch screen
Printing paper 112mm(W)x20m(L) high-speed thermal paper
Dimension 315mm(L)x215mm(W)x92mm(H)
Weight 1.8KG

Accessories

Spirometer                      1pc

Mouthpiece                     4pcs

Nose clip                         1pc

Recording Paper             1 pc

Power cord                      1pc
