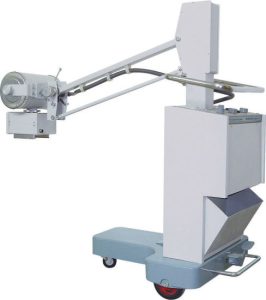

Mobile X-ray Radiography Equipment AM-NKX-50

Features

  1. For photography in hospital wards and emergency rooms.
  2. Flexible mobile operation performance.
  3. Wireless remote exposure, greatly reducing the radiation dose of physicians.



Specification

PARAMETER SPECIFICATION
   Power Supply Single phase AC three-wire system, voltage 180V~250V;

Frequency 50Hz; source resistance ≤ 0.22Ω; Capacity 8kW; max current 37A (instant)

Radiography Power supply voltage: AC 220V ± 22V;
Power frequency: 50Hz ± 0.5Hz;
Power capacity: ≥5kVA;
Maximum allowable internal resistance of power supply: 1Ω
X-ray tube focus Tube voltage: 40-90kV 11 levels, 5kV each; Tube current:

2 levels of 30 and 50mA;

Time: 0.05s-6s in 20 levels.

Mechanical properties When the X-ray generator window is down, the range of focus from the ground is 450mm ~ 1770mm;

The rotation angle of X-ray generator around the horizontal axis is ±180°;

The rotation angle of X-ray generator around the vertical axis is ± 90º;

Overall dimensions 1290(L)×680(W)×1935(H)(mm)
