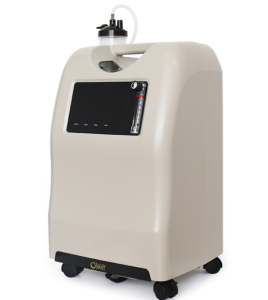

Oxygen Concentrator VS-AC-10


AC-10 10L oxygen concentrator is the model which can be optional to equip with one deluxe alloy barb, using a tubing to connect the 5-way splitter. It meets all range flow requirements for adult, pediatrics and child use in hospital, households, nursing rooms and etc. It can stably work in 24 hours a day and needs few maintenances of the main machine among its whole lifetime. Users do not need to open the machine body to do replacement of filters

  1. 24 hours work continuously
  2. Three alarm systems:power off alarm pressure circulation fault alarm and compressor fault alarm
  3. AVG oxygen purity: 93%±3%
  4. Low sound level: less than 55dB (A)
  5. Net weight: only 23.2kg
  6. Strong ABS shell, fashion style.

Technical Specifications

Oxygen flow 1-10 LPM
Output pressure 58.6±6 kPa
Power supply AC220V±22V,50Hz;110V±10V,60Hz
Input power 720VA (AVER)
Oxygen concentration 1-10 LPM 93%±3%
Operation Environment Temperature 5°C-40°C
Atmospheric pressure:86kPa-106 kPa
Net Weight 22.6kg
Noise <50dB(A)
Size 43cm*32cm*62cm(l*w*h)
Carton Size:50*37*71cm
Operation regular Time cycle/pressure rotation
Transportation/storage condition Temperature -20°C-55°C
Atmospheric pressure:86kPa-106 kPa
Equipment class & Type Class II  B
