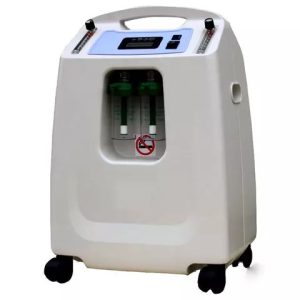

Oxygen Concentrator AM-AC-8

Features

AC-8 is the model which can produce average 93% purity oxygen to meet big flow requirements of hospital, home, Skincare center, glass work, welding industrial use and etc. It can stably work in 24 hours a day, always maintain oxygen purity at 93% at 8L/min and need few maintenances of the main machine among its whole lifetime. Users do not need to open the machine shell to attain its filters replacement. And this model can be customized as per client’s special request. Optional to use the 4-way oxygen splitter.



Technical Specifications

PARAMETER SPECIFICATION
Oxygen flow 1-8 LPM
Output pressure 58.6±6 kPa
Power supply AC220V±22V,50Hz;110V±10V,60Hz
Input power 510VA (AVER)
Oxygen concentration 1-8 LPM 93%±3%
Operation Environment Temperature 5°C-40°C
Humidity≤80%
Atmospheric pressure:86kPa-106 kPa
OCSI indicator (optional) 85% above green
85% below yellow
82% below red
Net Weight 19.2kg
Noise <50dB(A)
Size 43cm*32cm*62cm(l*w*h)
Carton Size:50*37*71cm
Operation regular Time cycle/pressure rotation
Transportation/storage condition Temperature -20°C-55°C
Humidity≤90%
Atmospheric pressure:86kPa-106 kPa
Equipment class&Type Class II  B
